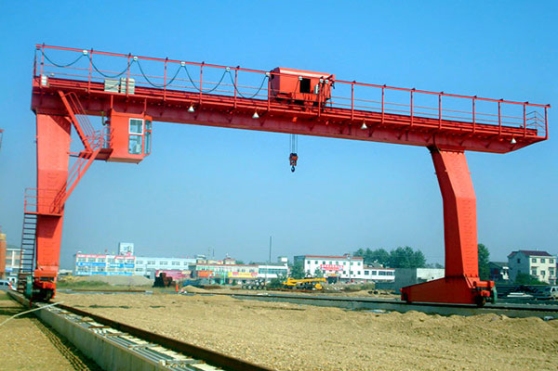

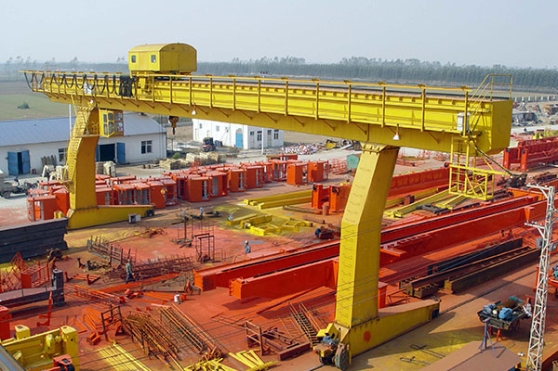

L-Shaped Legs Single Girder Gantry Crane with Winch
- Capacity:3,5,10,16T
- Span:12~30m
- Lifting height: 6,9m
- Lifting speed: 3.5,7,8m/min

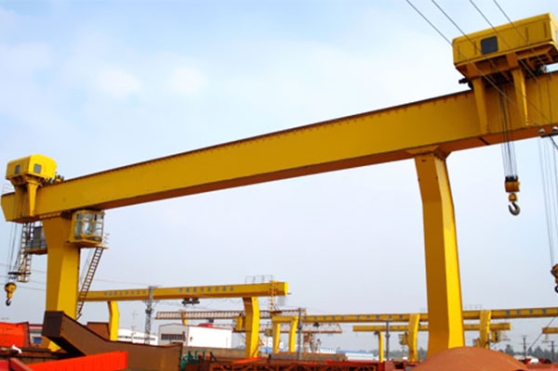

L Type 50T Single Girder Gantry Crane With Winch
Product Type: L
Lifting Capacity: 5-50T
Span Length: 8-35M
Operation method: Pendant control, remote control or operating cabin.
1. Quality problems of products sold by our company will be solved as per the “three guarantees” system of our company by the “three guarantees” service team;
2. Related personnel will be sent to the site immediately after receiving quality complaints (by call, letter or oral notice) from clients;
3. Personnel involved in after-sales service shall be serious and considerate in handling the problem to make clients care-free;
4. In addition to solve quality problems, personnel involved in after-sales service shall train clients, answer their technical inquiries and related questions free of charge;
5. Related cost for products with quality problem will be shouldered by our company. Our company charges for quality problems caused by clients (or problems after the warranty term), but the charge will not be higher than the expense (or cost);
|
Capacity |
t |
3 |
5 |
10 |
16 |
|||||||||||||||
|
Span |
S(m) |
12 |
16 |
20 |
24 |
12 |
16 |
20 |
24 |
30 |
12 |
16 |
20 |
24 |
30 |
12 |
16 |
20 |
24 |
30 |
|
Lifting height |
m |
6~9 |
6~9 |
9 |
6~9 |
9 |
6~9 |
9 |
||||||||||||
|
Lifting speed |
m/min |
8 8/0.8 |
8 8/0.8 |
7 7/0.7 |
3.5 3.5/0.35 |
|||||||||||||||
|
Trolley speed |
m/min |
20 |
20 |
20 |
20 |
|||||||||||||||
|
Crane speed |
m/min |
20 |
20 |
20 |
20 |
|||||||||||||||
|
Work duty |
|
A3-A5 |
A3-A5 |
A3-A5 |
A3-A5 |
|||||||||||||||
|
Track |
|
P34 P38 |
P24 P38 |
P38 P43 |
P38 P43 |
|||||||||||||||
