Double Beam Overhead Crane with Double Trolley

  • Capacity:5,10,16/3.2,20/5,32/5,50/10T
  • Span:10.5~31.5m
  • Lifting height: 6,9,12,18,24,30m
  • Lifting speed: 7.9,8.5,10.7,11.3,13.2,15.6m/min

Inquiry Contact Us

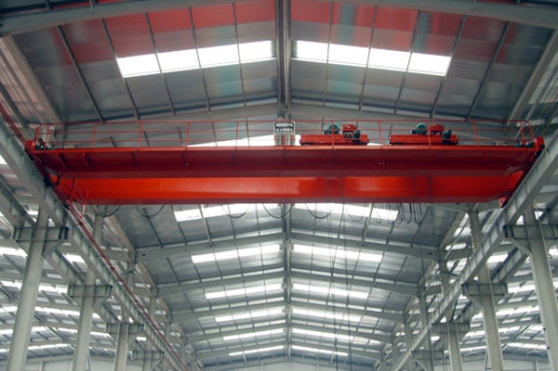

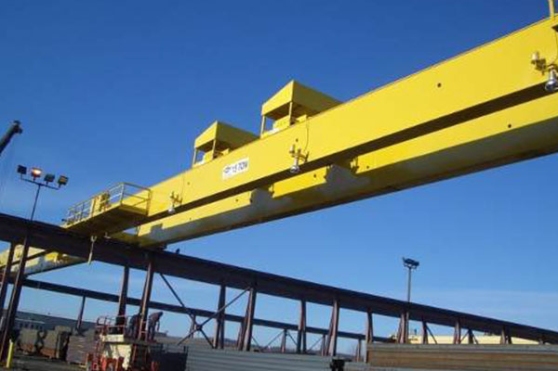

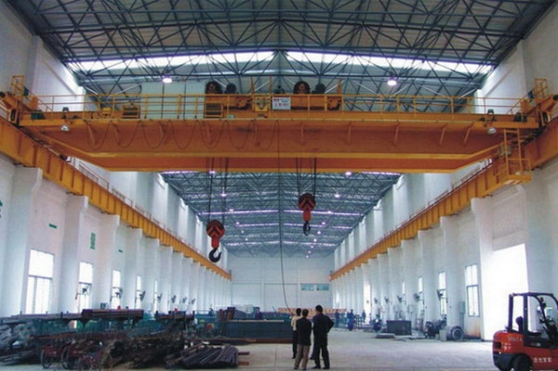

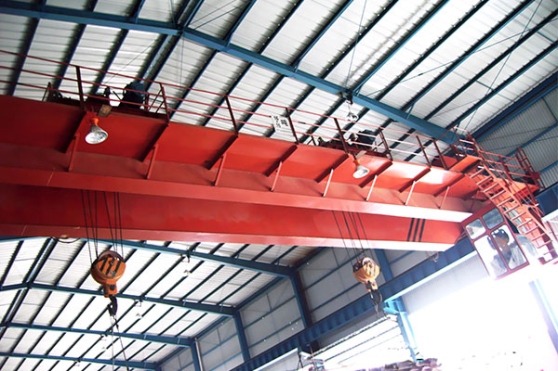

QE Model double trolley overhead crane is suitable to lift long materials(wood, paper tube, pipe and bar) in workshops or outdoors to store in factory and mines. The two trolley could work separately and at the same time.

QE double girder overhead crane are mainly consists of Girder frame, Crane travelling device, two lifting trolley and electrical parts. Bridge adopts box welded structure, high degree of vertical and horizontal rigidity; crane travelling mechanism adopts separate drive. It has a strong beam and a stable travelling mechanism; the emergency switch can stop any movement once any dangerous happened. It is rely on the bridge frame along the workshop rail direction moving longitudinal, the trolley along the main beam direction moving transverse and the hook lifting movement to work.

It is an excellent choice where high speeds and heavy service are required. As the widely used hoisting machinery currently especially is suitable for working at warehouses and freight yard and other department it is prohibited to use the equipment in the combustible, explosive or corrosives environment.

Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.

After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,

Henan Mine Crane Co,.LTD crane has a lot of honor for overhead crane certification for different overhead crane types

If you want to know more information about overhead crane, please find the overhead crane attachments, overhead crane pdf, overhead crane catalogue to get mover overhead crane specification and overhead crane regulations from the download center.

The Double girder overhead crane Capacity from 5ton to 900ton

Capacity

T

5+5

Span

m

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Lifting height

m

16

Lifting speed

m/min

15.6

Trolley travelling speed

m/min

37.2

Crane travelling speed

m/min

92.7

93.7

86.5

Total weight

kg

15406

17290

20020

21724

24213

28579

31970

35389

Max. Wheel load

KN

104

111

120

125

132

144

152

162

Rail recommended

Model

43kg/m

Total motor power

kw

27.8

31.8

Main dimension (mm)

Span(m)

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Rail top to crane top

H

1750

1840

Rail top to hook center

H4

55

5

Crane base distance

W

5140

5334

5940

Crane width

B

3450

4400

Trolley rail distance

K

1400

Hook left limitation

S1

800

Hook right limitation

S2

1250





Capacity

T

10+10

Span

m

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Lifting height

m

16

Lifting speed

m/min

13.2

Trolley travelling speed

m/min

43.8

Crane travelling speed

m/min

76

89

Total weight

kg

19947

21375

23541

27705

30304

34660

38352

41497

Max. Wheel load

KN

167

174

183

197

205

218

29

239

Rail recommended

Model

43kg/m

Total motor power

kw

32.3

44

Main dimension (mm)

Span(m)

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Rail top to crane top

H

1949

2039

Rail top to hook center

H4

533

443

Crane base distance

W

6274

7004

Crane width

B

3450

4400

Trolley rail distance

K

2000

Hook left limitation

S1

1050

Hook right limitation

S2

1300





Capacity

T

16+16

Span

m

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Lifting height

m

16

Lifting speed

m/min

10.7

Trolley travelling speed

m/min

44.6

Crane travelling speed

m/min

89

75.3

75.3

Total weight

kg

28061

30292

33412

38607

42832

47023

50586

55272

Max. Wheel load

KN

242

255

268

285

299

312

322

335

Rail recommended

Model

QU70

Total motor power

kw

47

56

Main dimension (mm)

Span(m)

10.5

13.5

16.5

19.5

22.5

25.5

28.5

31.5

Rail top to crane top

H

2187

2191

2321

Rail top to hook center

H4

637

635

505

Crane base distance

W

6074

6244

6544

Crane width

B

4150

4200

4500

Trolley rail distance

K

2000

Hook left limitation

S1

1850

Hook right limitation

S2

1500
