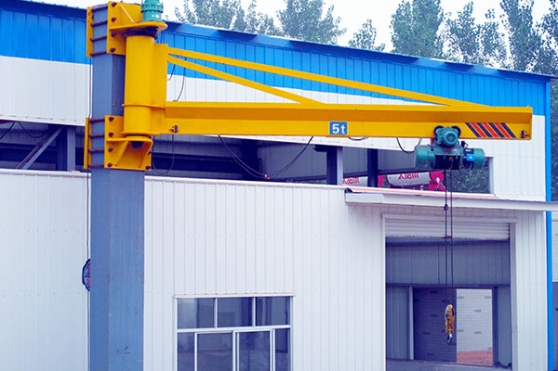

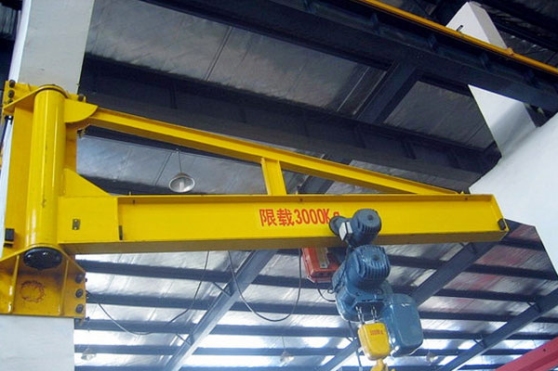

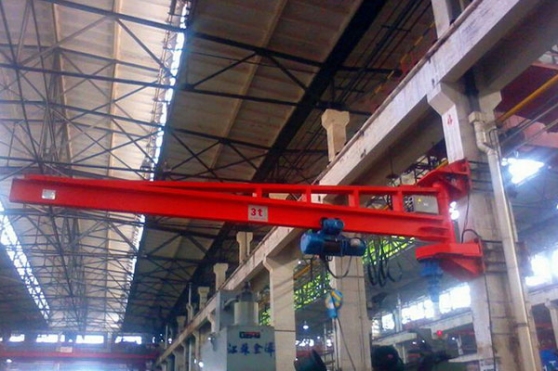

Wall Mounted Jib Crane

  • Capacity:5~10T
  • Lifting height: 2~10m
  • Arm length: As your demands

Inquiry Contact Us

Wall Mounted Jib Crane is reasonable and safe in operation. It has wide 360 degree operation scope which is suitable for machining workshop, assembling workshop, foundry, heat treatment plant, transportation, loading and unloading, spare parts to flip homework .Also,it’s with remote control device, so workman can operate from a long distance, it’s a safe and ideal modern rigger materials and equipment.

Rated Lifting capacity: 0.5- 10t; Max. capacity is 10t.
Arm length: 3~7m (Can be designed and fabricated according to your special requirement).
Lifting Height: 2-10m(Can be designed according to your real requirements).
Power Source: 3ph, 380V, 50HZ or under customer's local industry voltage.
Working Temperature: -25~+40°C.
Lifting mechanism: Electric Wire rope hoists.
Slewing Mechanism: Electric motor type or Manual control type (Two kinds type on optional).
Main Material: Q235B Mn Steel(It could meet your speical material requirement).
Swing angle is 180 degree.
