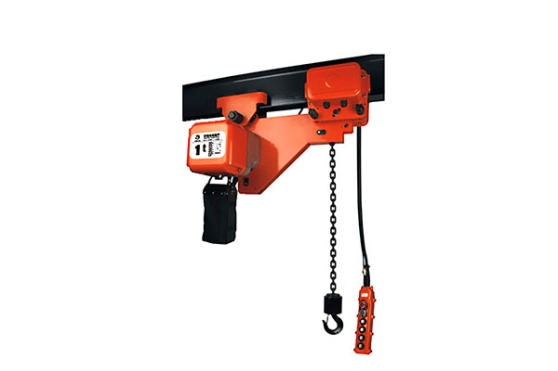

Headroom Electric Chain Hoist

  • Capacity:0.5~25T
  • Lifting height: As your demands
  • Lifting speed: 11~21m/min

Inquiry Contact Us

It is widely used in lifting heavy weights or installed on a single beam crane, linear, curve strander beams , which also be used to the hoist double beam, gourd gantry crane or cantilever crane.It is a light equipment for lifting,which is welcomed by Industrial and mining enterprises, railways, docks, warehouses. Its most important character is save space, which can lift higher.

0.5~25 ton lifting capacity

With upper hook (fixed)

Single/Double speed option

Shell: aluminum alloy

Chain: high quality G80

Chain container: canvas / sheet iron

Gear & chain wheel: alloy steel + heat treatment

Hook: heat forging+heat treatment

Chain diameter: 6.3~11.2mm (as per different capacities)

Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed),

Standard chain length: 3m (can be customized)

Power specification:200~690V,50/60HZ,3 Phase

Safe voltage:24V/36V/48V

Button switch:2/4/6/8 buttons, IP65

Insulation grade:F class

Protection class: IP55

Working group:M4

Working temperature: -40℃ ~ +40℃

OEM acceptable

Customized logo acceptable

Package: plywood case

Warranty: 1 year for electric parts
